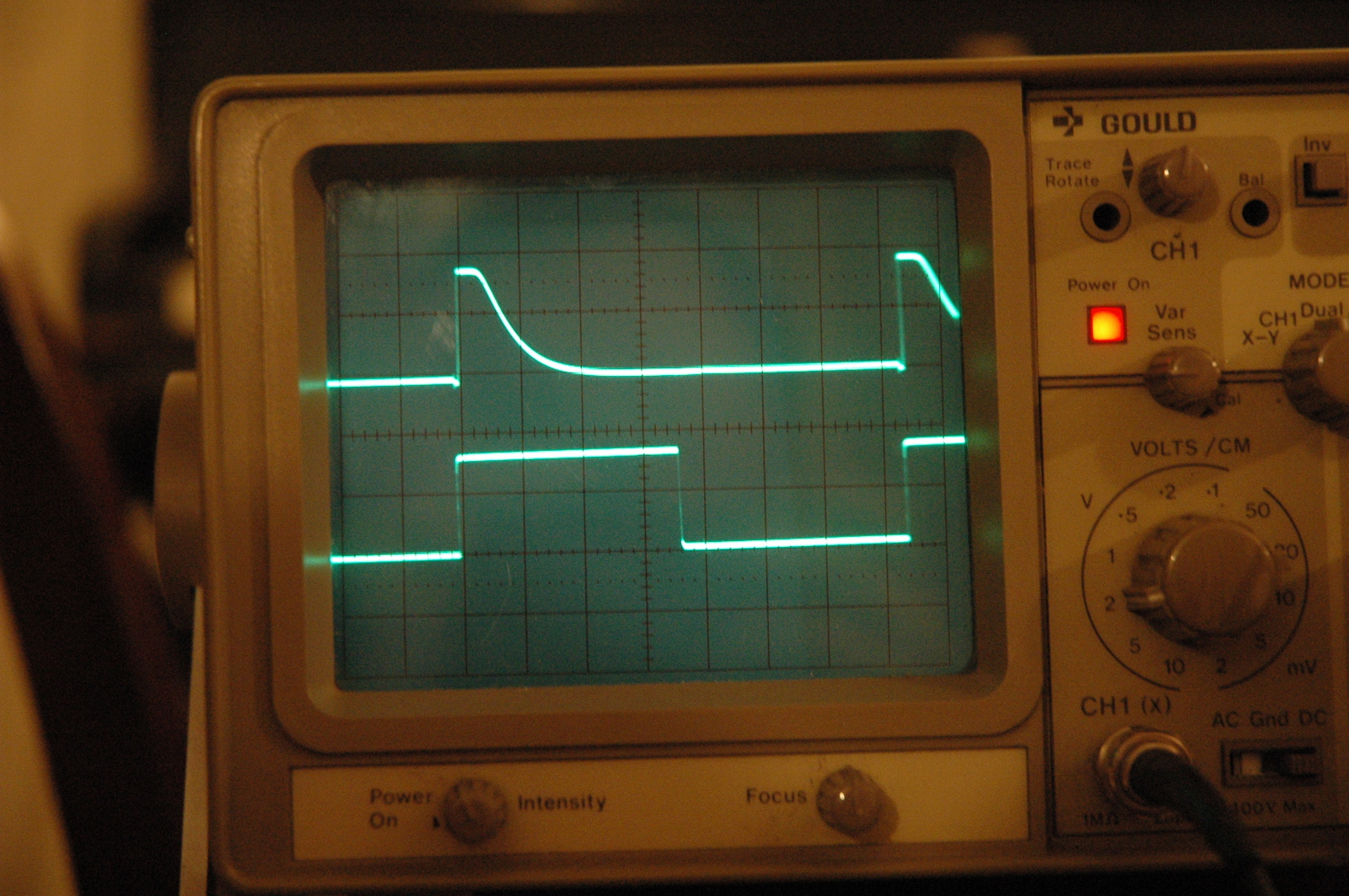

Top trace is the pulse generator's output, being repeatedly driven by a 555. This is the waveform with the PNP transistor and version 1 of the circuit. Version 2 has a much steeper drop off, and version 3 is practically square wave.
